The ultra portable, lightweight Yamaha DBR Powered Speaker - DBR10 / DBR12 / DBR15 offers a low frequency driver and crystal clear high frequency driver. The on-board 2 channel mixer accepts a wide range of input types whilst the powerful DSP is used to protect the system and to tailor the sonic characteristics. Can be pole mounted, flown using standard eye-bolts, or used as a floor monitor.

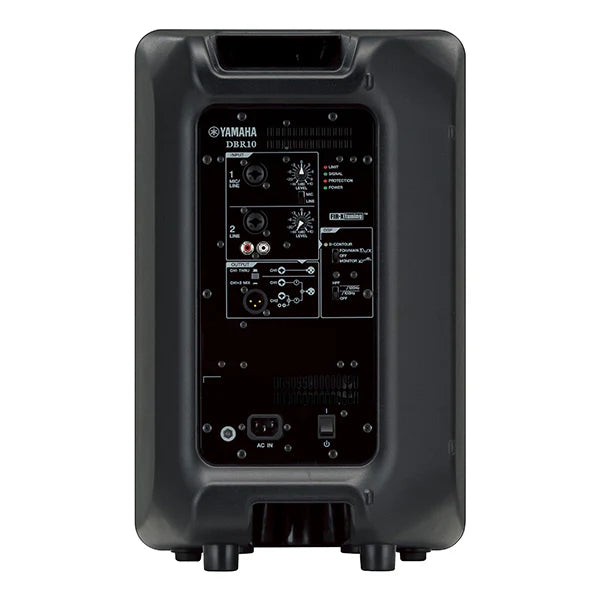

DBR10
700 watts of power
10" low frequency driver
- Compact design ideal for various environments
- Delivers peak SPL of 129dB for powerful sound
- Bi-amped power configuration with 700W total
- Wide frequency range from 55Hz to 20kHz
- Flexible mounting options: pole or floor wedge
- Versatile inputs: 2 XLR/TRS combo, 1 stereo RCA
- Easy-to-use Onboard 2-Channel Mixer
- Rigging Points for Installation Applications
DBR12
1,000 watts of power
12" low frequency driver
- 1000W power ensures outstanding performance
- Handles up to 131dB SPL for controlled output
- FIR-X tuning optimises sound and protection
- Versatile use as main speaker or floor monitor
- Switchable highpass filter for easy subwoofer addition
- Bi-amped design with 12” LF and 1.4” HF drivers
- Wide frequency range from 52Hz to 20kHz
- Weight: 15.8 kg
DBR15
1,000 watts of power
15" low frequency driver
- Delivers powerful 1000W bi-amped performance
- Achieves impressive maximum SPL of 132dB
- Covers broad frequency range from 50Hz to 20kHz
- 15-inch LF driver for prominent low frequency
- Flexible mounting: pole or floor wedge options
- Compact design: 27.6" x 17.9" x 14.9"
- Includes versatile inputs: XLR/TRS, RCA
- Weight 19.3 kg
