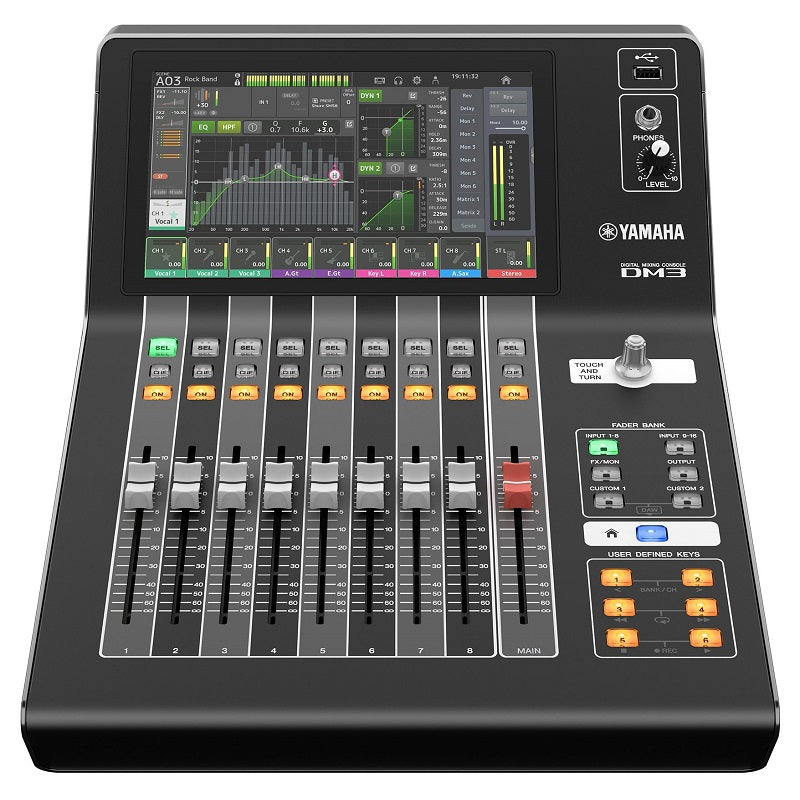

Yamaha DM3 Digital Mixing Console - Various
Yamaha DM3 Digital Mixing Console - Various
Yamaha DM3 Digital Mixing Console - Various
Yamaha DM3 Digital Mixing Console - Various
Yamaha DM3 Digital Mixing Console - Various
Yamaha DM3 Digital Mixing Console - Various
Yamaha DM3 Digital Mixing Console - Various
Yamaha DM3 Digital Mixing Console - Various
Yamaha DM3 Digital Mixing Console - Various
$2,999.00$2,689.00

SKU: VEH2230

Please note, not all items on our website are in stock. This item may be in store, at the warehouse or on backorder.

You will be contacted if there is any delay with your order.

DM3 StandardDM3 with Dante

Fast, flexible, full-spec setup

Transporting, unloading, and setting up a sound reinforcement system at a venue can be one of the most laborious tasks a sound engineer undertakes. Not so with the DM3 Series which requires less space and time for configuration and physical setup thanks to flexible patching along with Quick Pro Presets, Editor and StageMix software, and Dante compatibility (DM3 model only), minimizing system setup and configuration time considerably. Combining all this with 6 mix + 2 matrix + 2 effects processors, the DM3 Series are powerful, compact, sturdy consoles that you can take anywhere.

Thanks to precise structural design and material selection, the DM3 Series combines a light weight of only 6.5 kg with a robust housing that can stand up to the rigors of touring.

Yamaha’s most compact Dante-compatible mixer, the DM3 delivers high-quality 96kHz sound using 16 analog inputs and eight outputs with low latency, and matches perfectly with the Tio1608-D I/O Rack for simpler, faster system setup.

*There are two models in the DM3 Series, the Dante equipped DM3 and the DM3 Standard, which does not feature Dante.

The DM3 Series comes equipped with two high-quality multi-effects processors featuring eighteen types of high-grade effects including the REV HD and REV R3— the first of its kind in Yamaha mixers— offer sound engineers the freedom to craft a sound that accurately reflects their own sonic sensibilities.

DM3 DM3 Standard
Mixing Capacity Input Channels 16 mono + 1 stereo + 2 FX return 16 mono + 1 stereo + 2 FX return
Mix Buses 6 6
Matrices 2 (Supports Input to Matrix) 2 (Supports Input to Matrix)
Stereo Buses 1 1
FX Buses 2 2
Cue Buses 1 1
I/O Connectors Analog Input 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
Analog Output 8 (XLR) 8 (XLR)
Dante 2 (etherCON: Primary/Secondary) -
Network 1 (RJ-45) 1 (RJ-45)
USB TO HOST 1 (USB Type-B, USB2.0) 1 (USB Type-B, USB2.0)
USB TO DEVICE 1 (USB Type-A) 1 (USB Type-A)
Phones 1 (TRS Phones) 1 (TRS Phones)
DC 1 (XLR 4pin, DC power IN) 1 (XLR 4pin, DC power IN)
User Interface 1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder 1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder
Recording & Playback PC/Mac Recording 18 track, Playback 18 track Recording 18 track, Playback 18 track
USB storage device Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory) Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory)
Sampling frequency rate 96 kHz / 48 kHz 96 kHz / 48 kHz
Signal delay Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz) Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz)
Frequency response +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT
Total harmonic distortion Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1 Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1
Hum & noise level Equivalent input noise -126 dBu typ., Input Gain= Max. -126 dBu typ., Input Gain= Max.
Residual output noise -84 dBu, ST main off*2 -84 dBu, ST main off*2
Dynamic range 110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min. 110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Crosstalk -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3 -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3
Power requirements DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz) DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
Power consumption 43 W 43 W
Dimensions W 320 mm (12.6") 320 mm (12.6")
H 140 mm (5.6") 140 mm (5.6")
D 455 mm (18.0") 455 mm (18.0")
Net weight 6.5 kg (14.3 lb) 6.5 kg (14.3 lb)
Included Accessories Owner's Manual, Power Adapter, Download Information Owner's Manual, Power Adapter, Download Information
Accessories RK-DM3 RK-DM3
Operating temperature 0 - 40 °C 0 - 40 °C
Storage temperature -20 - 60 °C -20 - 60 °C
  • *1 Total Harmonic Distortion is measured with a –18 dB/octave filter@80 kHz.
  • *2 Hum & Noise are measured with an A-Weight filter.
  • *3 Crosstalk is measured with a –30 dB/octave filter@22 kHz.
